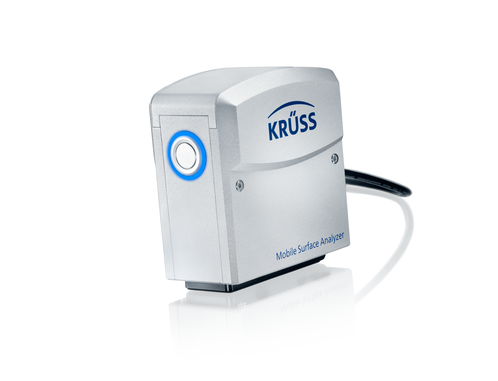

Mobile Surface Analyzer
MSA Flexible Liquid
Fast, automatic, and non-destructive wetting analysis with your liquids of choice
Product group specifications
Dosing System
Syringe Dosing
1 × single direct dosing
Drop deposition (syringe dosing)
software-controlled
Syringes, volume
disposable cartridge (1 mL)
Resolution (syringe dosing)
0.25 μL
Speed (syringe dosing)
2.7 µL/s – 100 µL/s
Camera system (standard)
Connection
USB 3.0
Performance
25 fps at 1000 × 700 px
Optics (standard)
Focus
fixed focus
Zoom
fixed focal length
View angle
2°
Field of view
4.7 mm × 3.3 mm
Resolution of optics
5 μm
Illumination
Types
high power LED
Wave length, dominant
468 nm
Field of light
5 mm × 23 mm (D × H)
Measurement specifications
Software
Software type
ADVANCE
Software languages
Chinese (simplified), English, French, German, Japanese, Korean, Portuguese, Russian, Spanish
Software modules
Contact angle (recommended)
Surface free energy of solids (optional)
Adhesion Analysis (optional)
Remote Control API (optional)
Sessile drop
Results
contact angle
Range
0 to 180° (software-based)
Resolution
0.01° (software-based)
Accuracy
0.8° (instrument-based)
Models
conic section
polynomial
circle
Young-Laplace
height-width
Types
static
Surface free energy of solids
Results
surface free energy
polar & disperse part
acid & base part
H-bond part
Models
equation of state
Zisman
Fowkes
Wu
Owens-Wendt-Rabel-Kaelble
extended Fowkes
acid-base theory
Constrained Sessile Drop
Results
surface tension
Range
0.01 to 2000 mN/m (software-based)
Resolution
0.01 mN/m (software-based)
Models
Young-Laplace
General specifications
Sample dimensions
Maximum sample space
∞ × ∞ × ∞ (W × D × H)
Instrument dimensions
Footprint
84 mm × 32 mm (W × D)
Height
112 mm
Weight (without accessories)
0.85 kg
Environment
Operating temperature
10 °C to 40 °C
Humidity
without condensation
Interfaces
PC
USB 3.0
Housing and peripherals
Compartment
aluminum
Power supply
Voltage
5 V (powered via USB)
Power consumption
4.5 W
